UNF Neutralizing Filters
Neutralizes and Raises pH of Acidic Water
Certified for Low pH Adjustment
The UNF upflow NRV Neutralizing Filter features a specialized media that raises the pH of acidic water, effectively neutralizing its corrosive properties. By increasing the pH, it not only protects pipes, plumbing fixtures, and appliances but also enhances the oxidation of iron and manganese, enabling the use of an iron filter. Over time, replenishing the media may be necessary for optimal performance.
Manuals
Brochures
Warranty
Warranty
Certifications
Key Features
Affordable: Economical whole-house neutralizing filter with non-regenerating valve.
Easy to Use & Maintain: Designed for simple operation and service.
Worry-free Reliability: Upflow prevents media bed from packing/channeling.

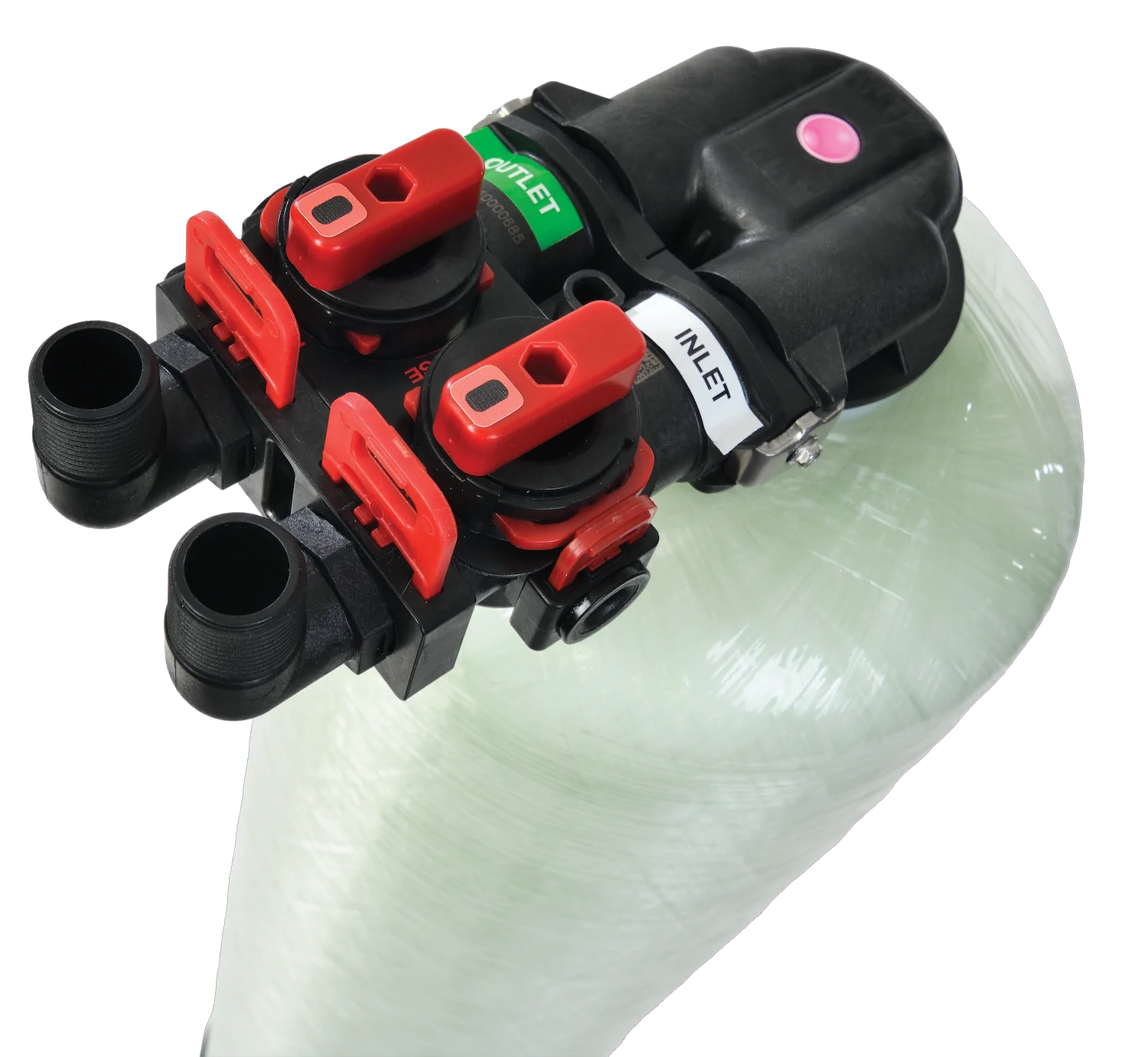

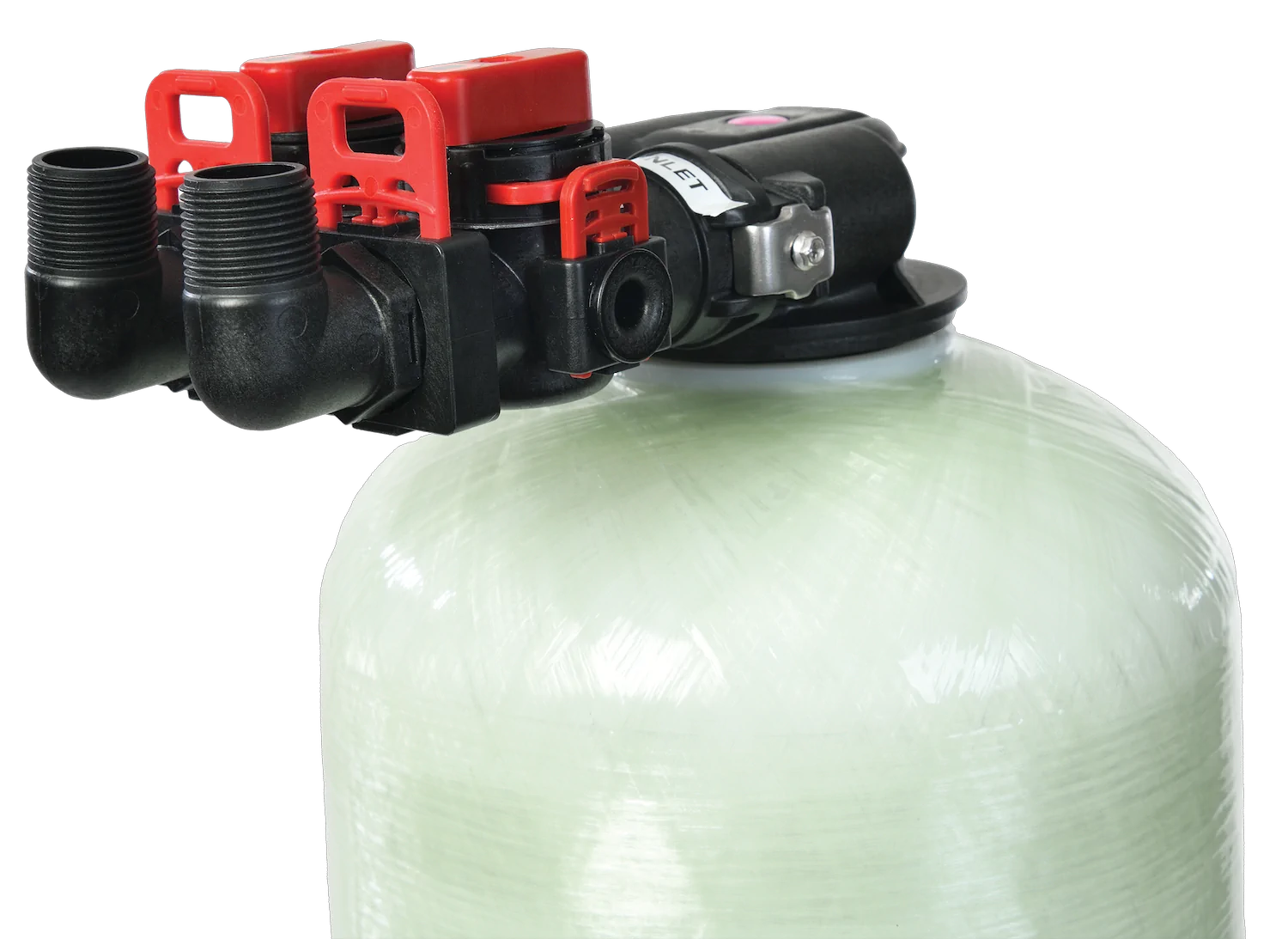

Valve Features
Professionally Engineered for Performance
| MODEL NUMBER | NVO485UFHNUDH-150 |
|---|---|
| Item Number | 15020499-1 |
| SERVICE FLOW RATES | |
| Normal | 5.0 US gpm |
| Peak | 8.0 US gpm |
| Backwash Flow Rate | 5.0 US gpm |
| Filter Media Volume (Cubic Feet) | 1.5 ft³ |
| Resin Quantity (Cubic Feet) | 1.5 ft³ |
| Pressure Tank Size (Inches) | 10 x 54 |
| Tank Jacket / Media Loaded | No |
| Brine Tank Size (Inches) | 18.1 x 34.5 |
| Salt Storage Capacity | 240 lbs |
| Shipping Weight | 311 lbs |
| Regeneration Type | UPFLOW (COUNTER CURRENT) |
| Plumbing Connections | INCLUDES 3/4" 90° NPT ELBOWS |
| Resin Type | AQUAFINE® 8% HIGH CAPACITY ION EXCHANGE RESIN |
| pH Adjustment Media | CANATURE CALCITE |
| Electrical Requirements | INPUT 120V 60 Hz - OUTPUT 12V 650mA |
| Water Temperature Limits | MIN 40° - MAX 110° F (4° - 43° C) |
| Water Pressure Limits | MIN 30 - MAX 125 PSI (207 - 862 KPA) |
Dimensions
| NVO485UFHNUDH | 150 |
|---|---|
| TANK / VALVE (A x B inches) | 66.0 x 24.0 |
| BRINE TANK (C x D inches) | 18.1 x 34.5 |
