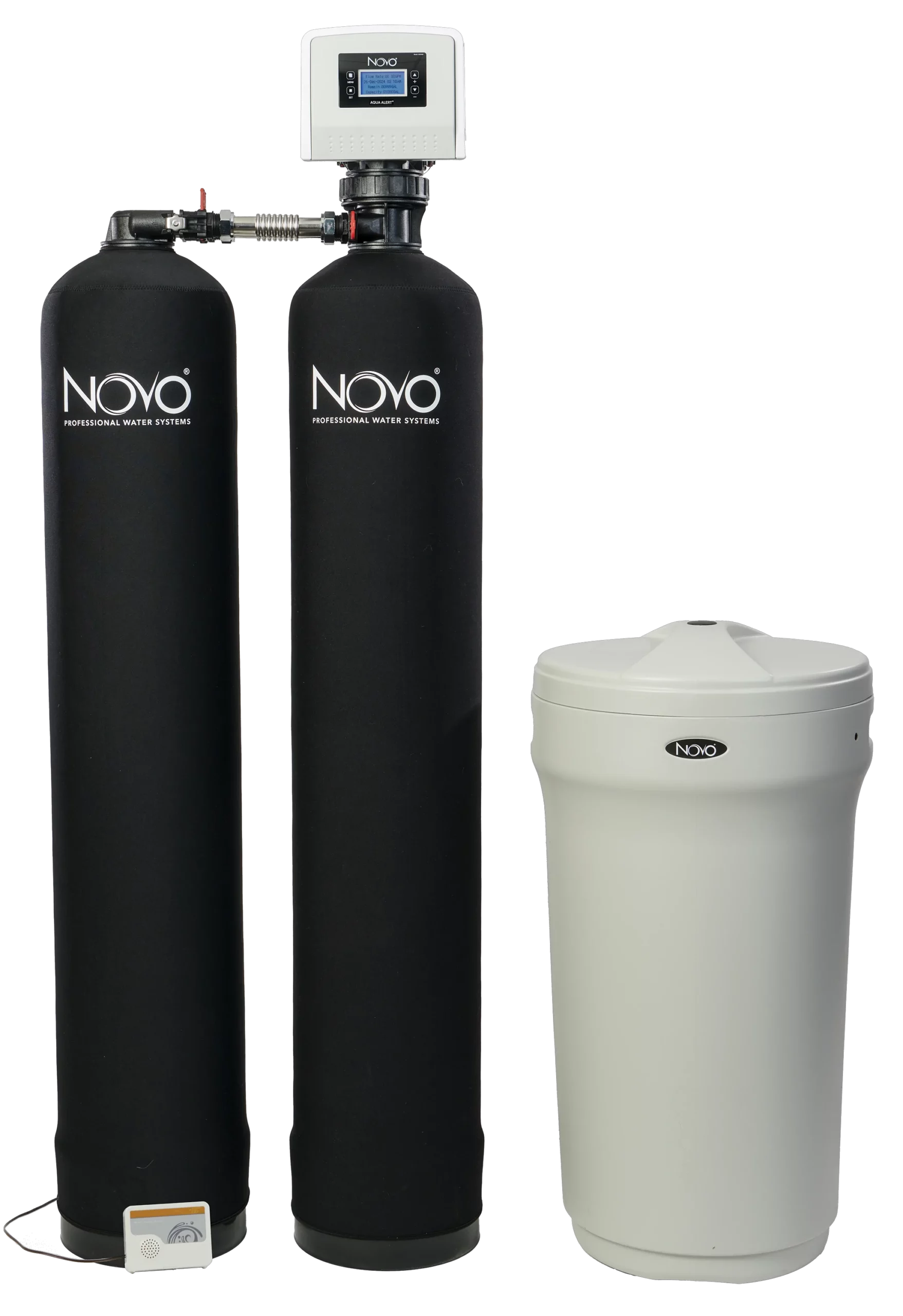

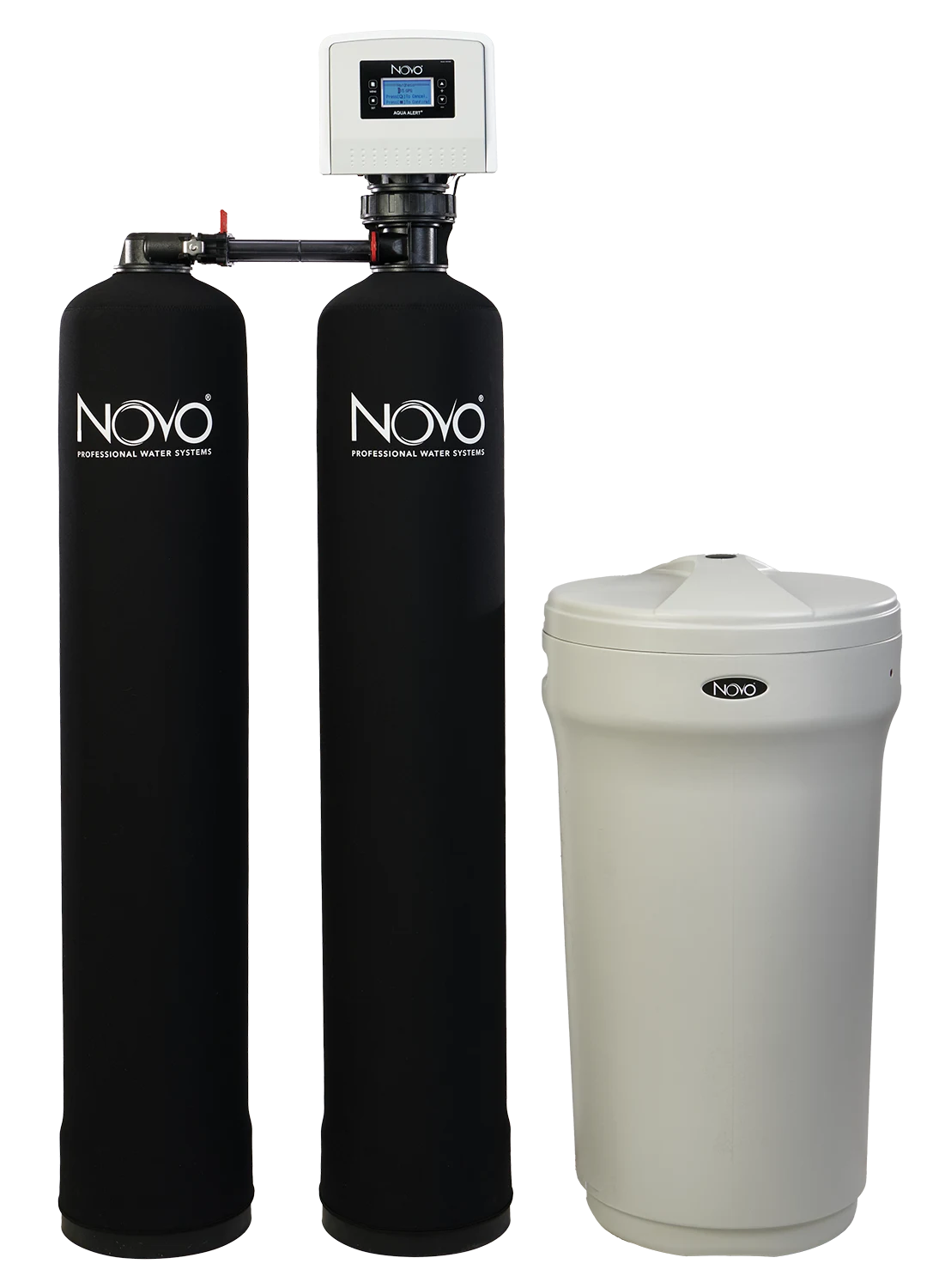

NVO489UFHTO with Aqua Alert®
High-Flow, WiFi Monitoring, Reduces Bad Taste & Odor
97% CHLORINE
REMOVAL FOR OVER
1,100,000 GALLONS*
Based on model: NVO489UFHTO-150.
The ideal solution for large households on municipal water, the 489UFHTO with Aqua Alert® combines high-efficiency, high-flow water softening with whole home carbon filtration and the ability to control your system from your phone. Third-party certified to provide soft water and reduce bad taste and odor caused by chlorine and chloramines.
Warranty
Certifications
Key Features

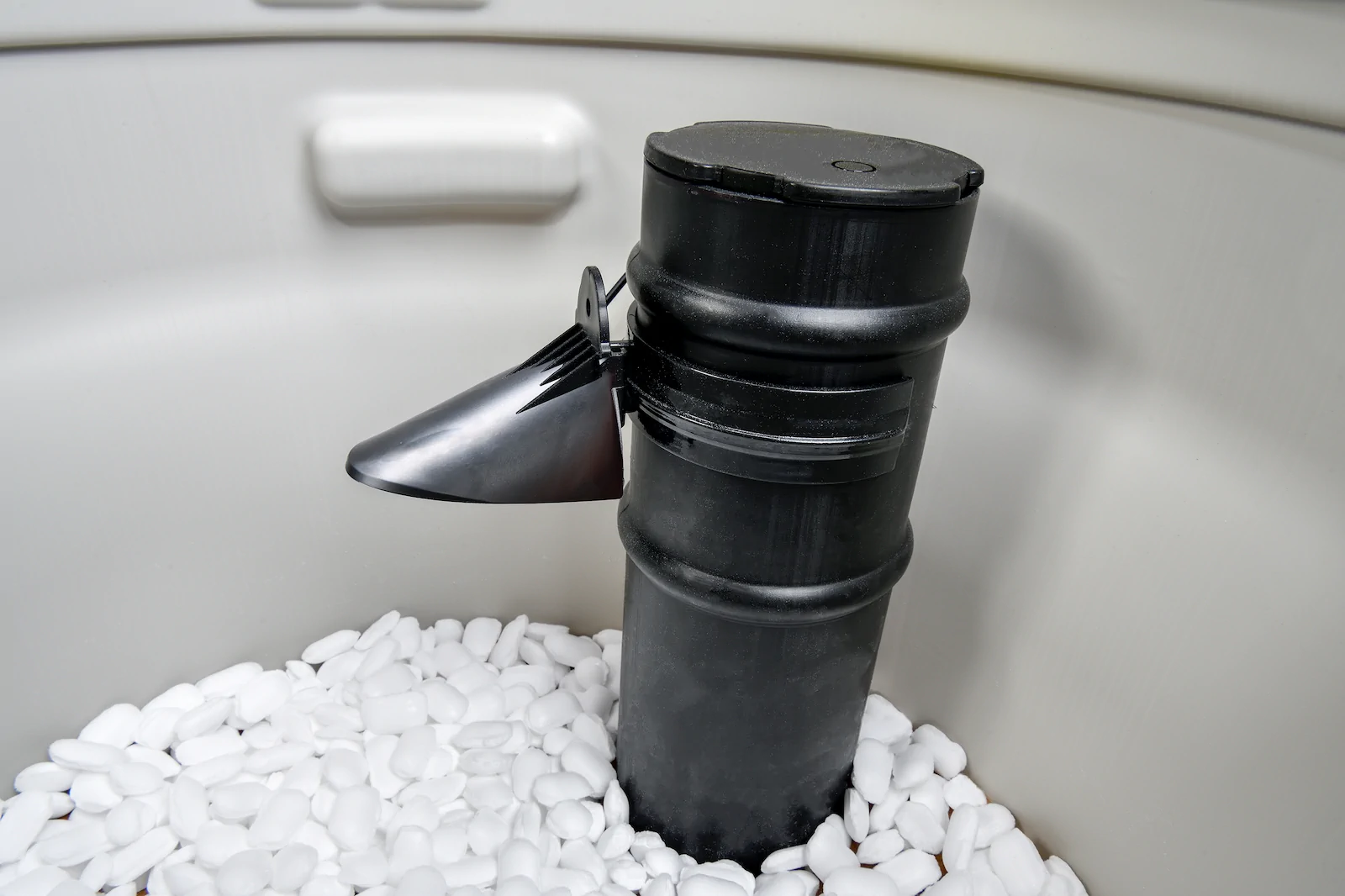

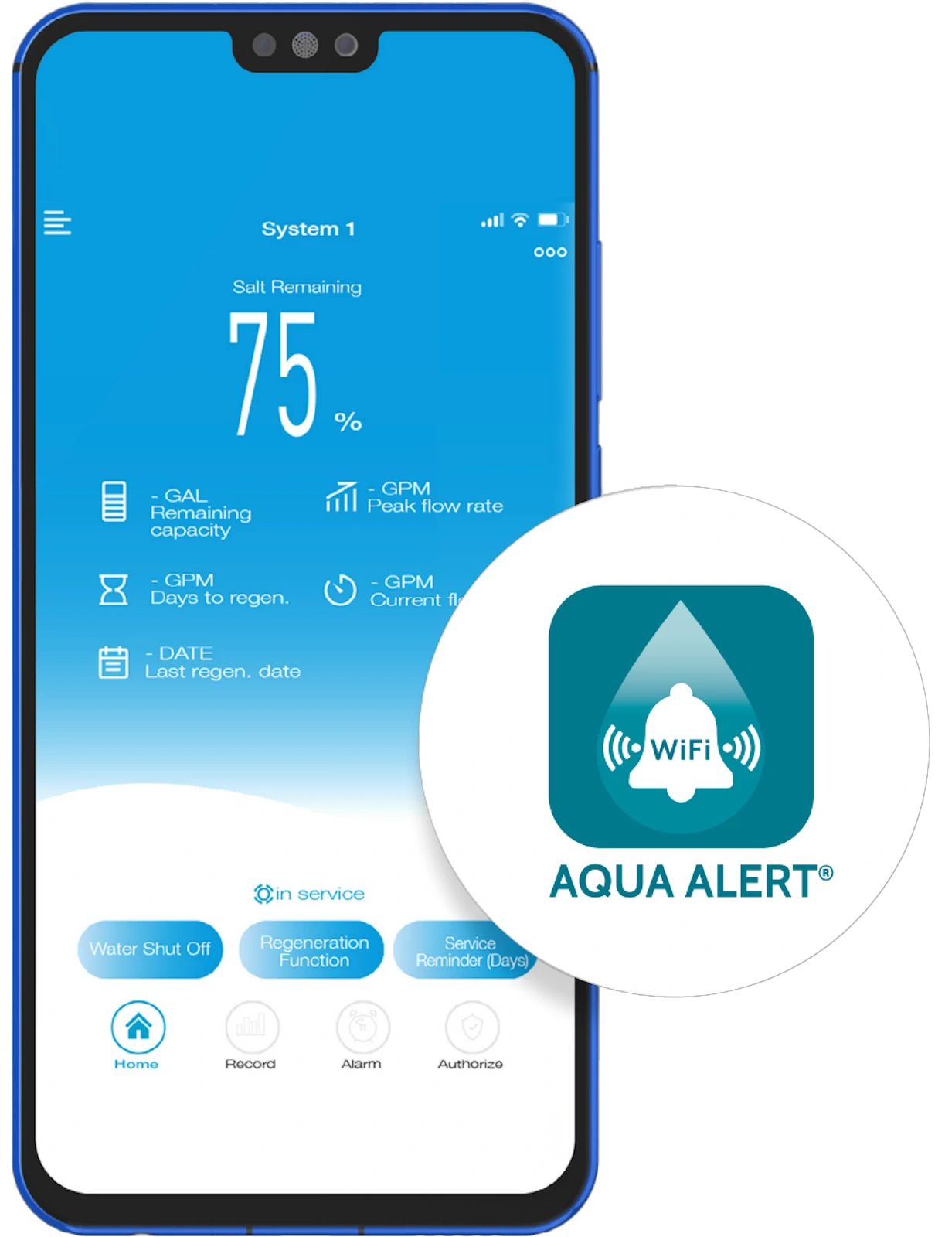

Aqua Alert®: Enjoy full control from the convenience of your phone with smart features like reminders to add salt, and real-time salt and water tracking. Optional leak alarm and remote water shut off give you complete control and peace of mind.

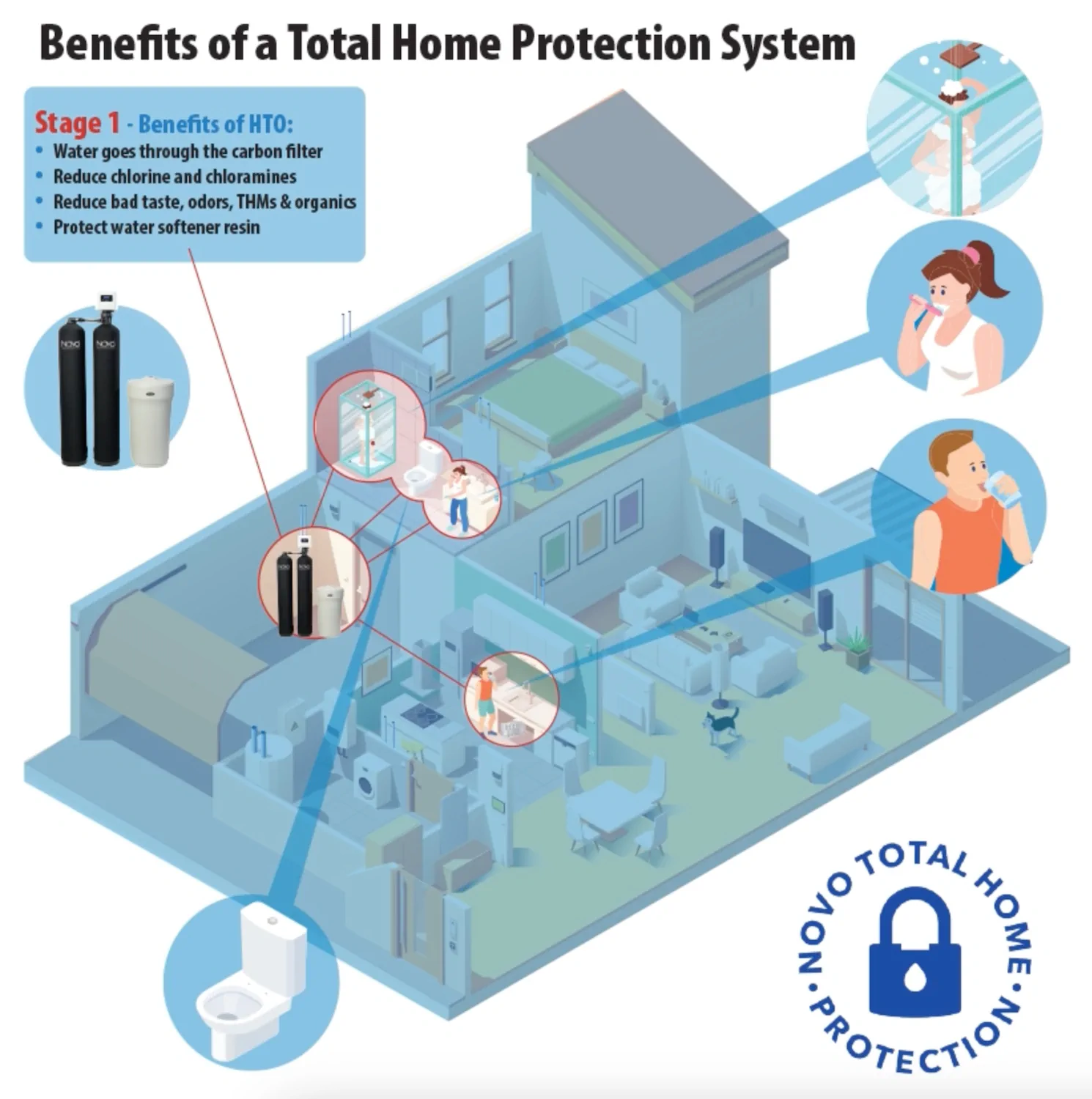

Whole Home Chlorine Reduction: IAPMO certified for chlorine reduction. AquaFine® catalytic carbon reduces chlorine, chloramines and chlorine by-products such as chloroform and other trihalomethanes (THMs).

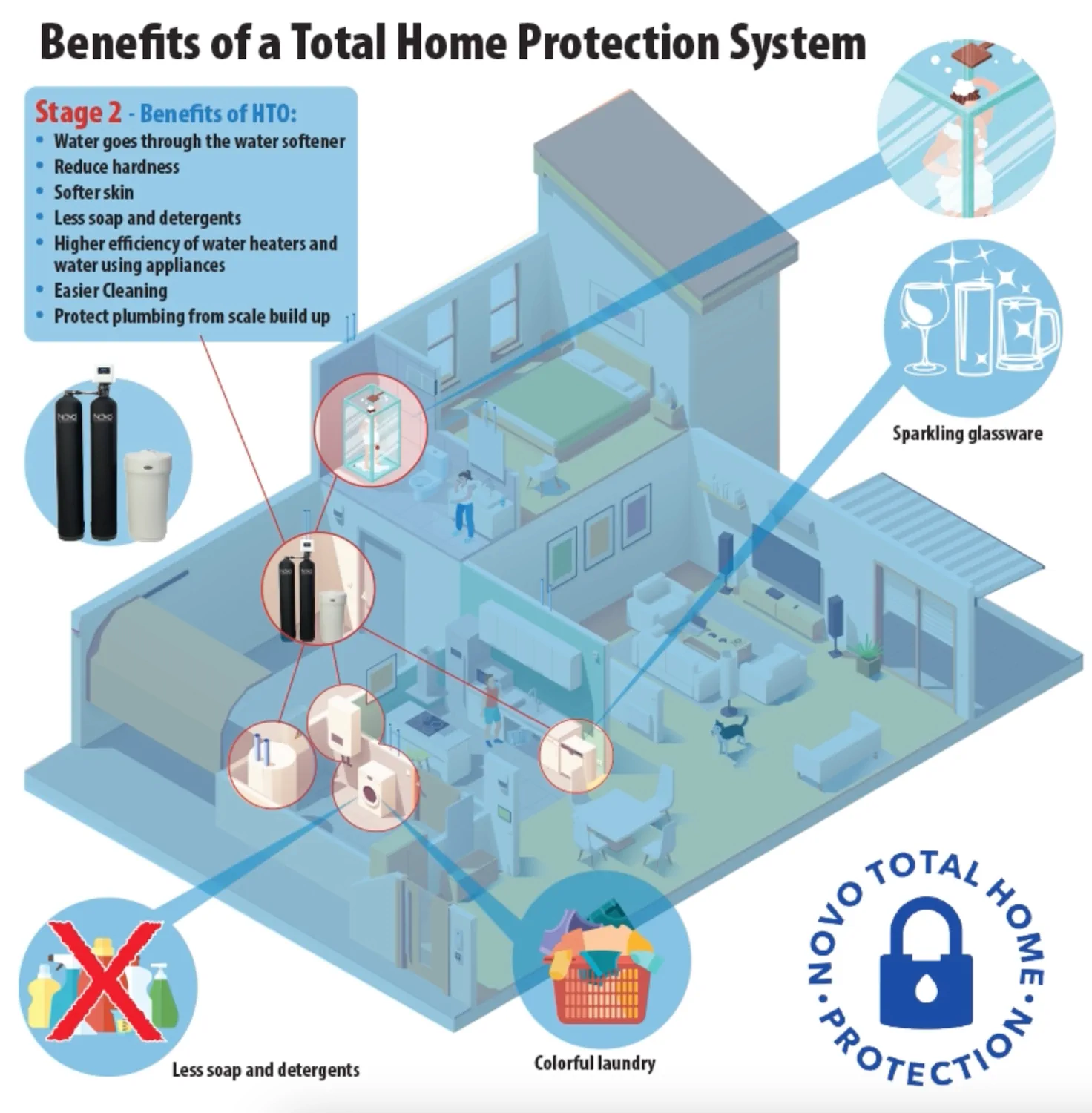

Upflow Regeneration: Saves salt by preserving the unused portion of the softening bed from unnecessary ion exchange.
Precision Brining: Calculates the exact amount of brine required to regenerate, using up to 30% less salt.
Whole Home Chlorine Reduction: IAPMO certified for chlorine reduction. AquaFine® catalytic carbon reduces chlorine, chloramines and chlorine by-products such as chloroform and other trihalomethanes (THMs).
Upflow Regeneration: Saves salt by preserving the unused portion of the softening bed from unnecessary ion exchange.
Precision Brining: Calculates the exact amount of brine required to regenerate, using up to 30% less salt.
Automatic System Refresh: If no water is used for seven (7) days, the system will perform an automatic refresh to prevent bacteria growth.
Soft Water Brine Tank Refill: Keeps tank & injectors clean.
Soft Water Recharge: If capacity goes below 3%, an automatic 15-minute recharge restores softening until the next regeneration.

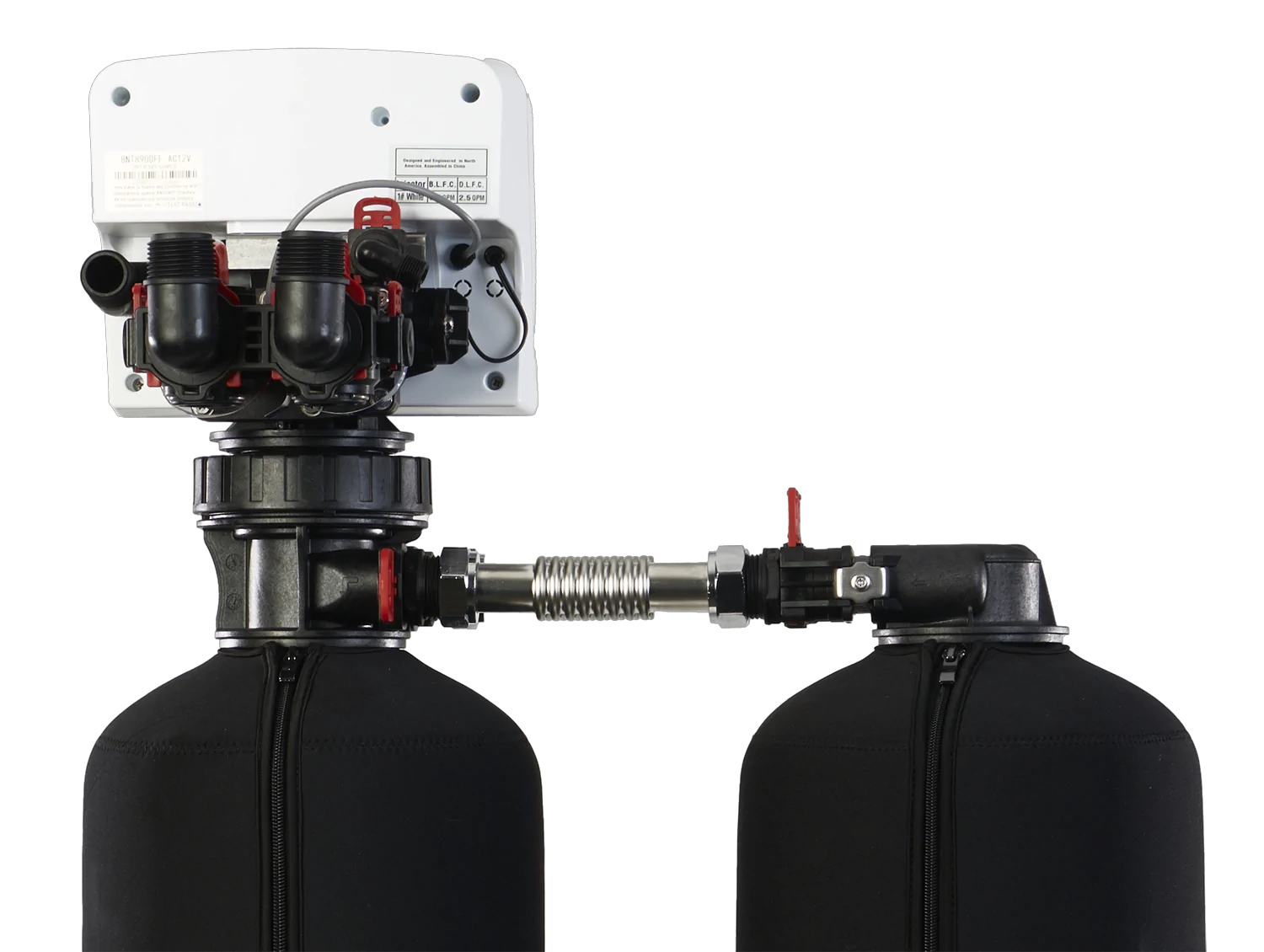

Tank Features: Brine tank with safety float, air check and injection molded brine grid to reduce bridging. Moisture wicking neoprene tank jacket included on all pressure tanks.
Soft Water Brine Tank Refill: Keeps tank & injectors clean.
Soft Water Recharge: If capacity goes below 3%, an automatic 15-minute recharge restores softening until the next regeneration.
Tank Features: Brine tank with safety float, air check and injection molded brine grid to reduce bridging. Moisture wicking neoprene tank jacket included on all pressure tanks.

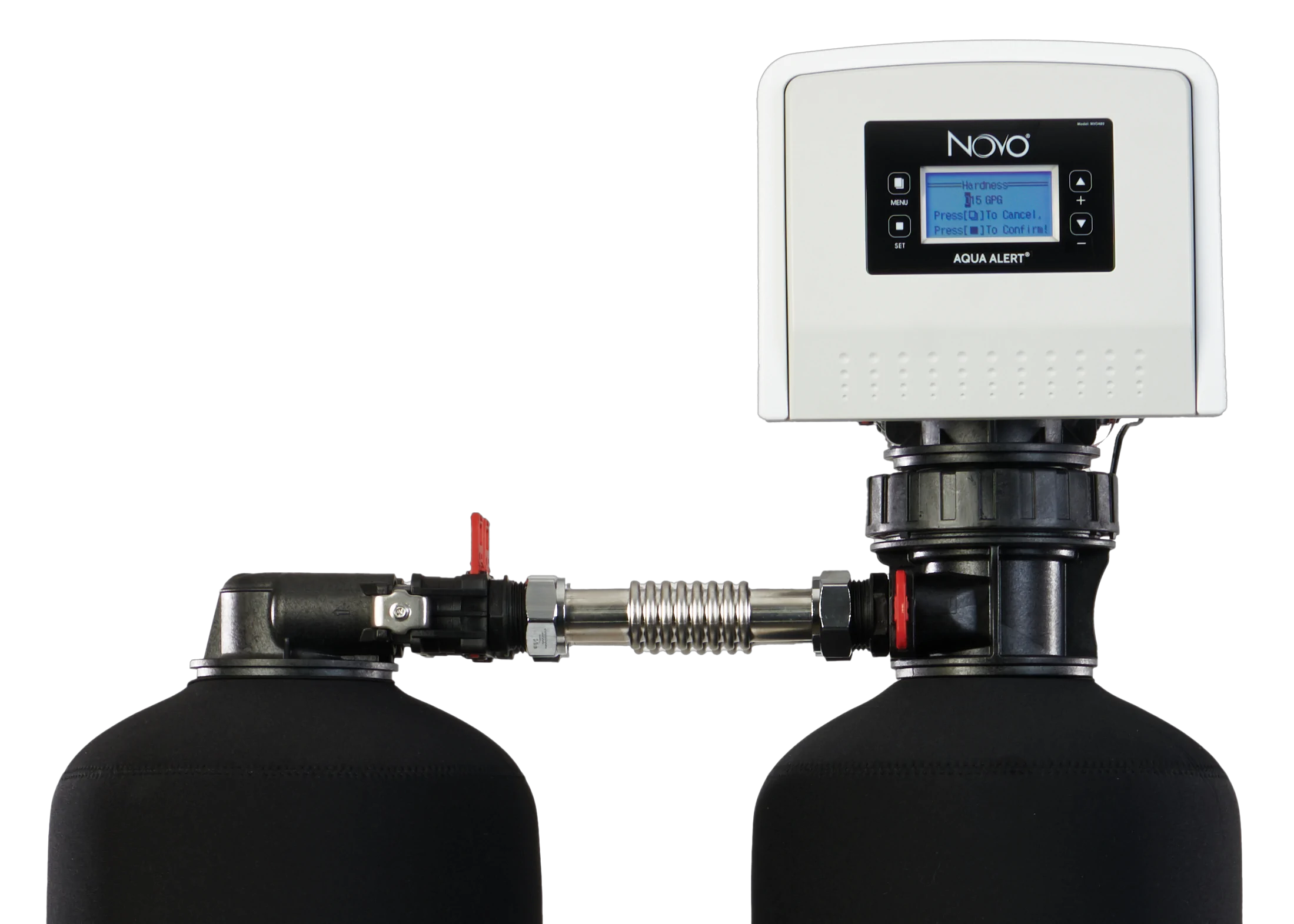

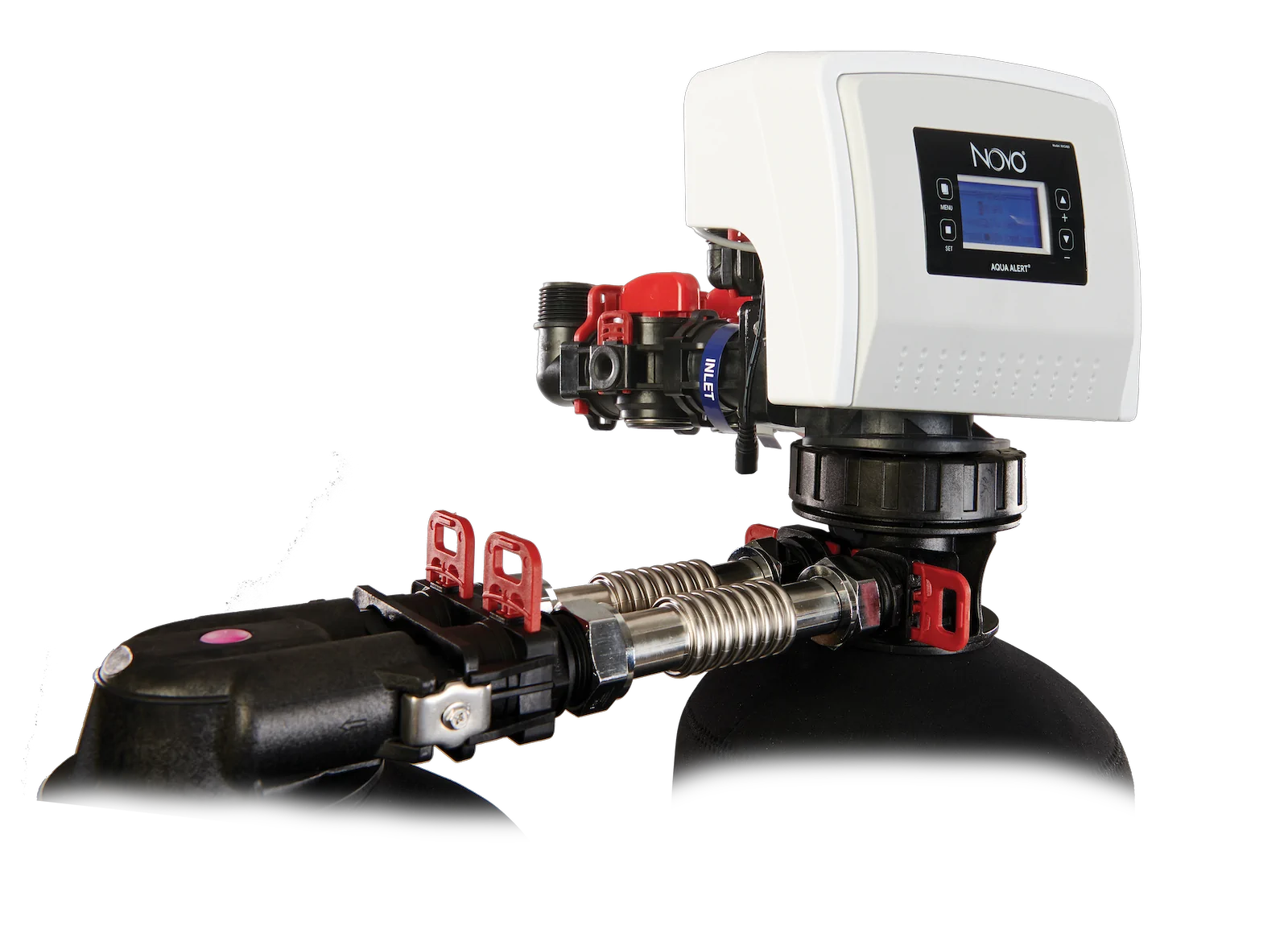

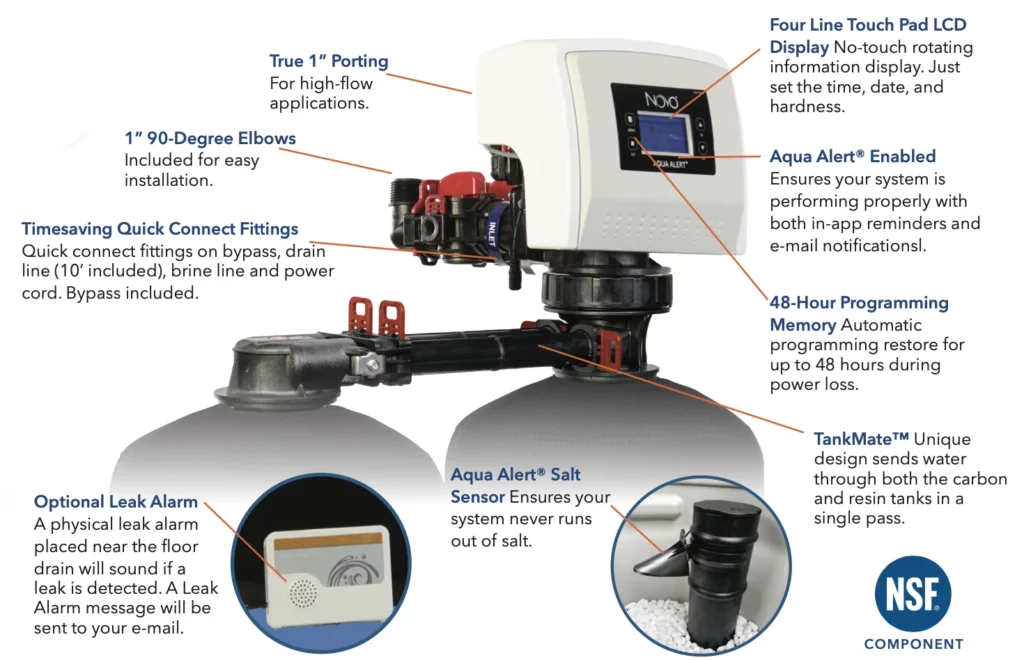

Valve Features
Professionally Engineered for Performance
| MODEL NUMBER | NVO489UFHTO-100 WF | NVO489UFHTO-150 WF | NVO489UFHTO-200 WF | NVO489UFHTO-300 WF | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Number | 15020670-1 | 15020671-1 | 15020672-1 | 15020673-1 | |||||||||||||||||||||||||
| MODEL NUMBER | NVO489UFHTOK-100 WF | NVO489UFHTOK-150 WF | NVO489UFHTOK-200 WF | TOK models only available in USA | |||||||||||||||||||||||||
| Item Number | 15020674-1 | 15020675-1 | 15020676-1 | — | |||||||||||||||||||||||||
| Salt Used Per Regeneration | 6.0 lbs | 9.0 lbs | 12.0 lbs | 18.0 lbs | |||||||||||||||||||||||||
| Water Used Per Regeneration | 86.4 gal | 148.0 gal | 162.4 gal | 224.8 gal | |||||||||||||||||||||||||
| Hardness Removal (Grains) | 21,600 | 32,400 | 43,200 | 64,800 | |||||||||||||||||||||||||
| Tank #1 Carbon Quantity (Cubic Feet) | 1.0 ft³ | 1.5 ft³ | 2.0 ft³ | 3.0 ft³ | |||||||||||||||||||||||||
| Tank #2 Resin Quantity (Cubic Feet) | 1.0 ft³ | 1.5 ft³ | 2.0 ft³ | 3.0 ft³ | |||||||||||||||||||||||||
| Pressure Tank Size (Inches) | 9 x 48 | 10 x 54 | 12 x 52 | 14 x 65 | |||||||||||||||||||||||||
| Media Loaded | Yes | Yes | Yes | No | |||||||||||||||||||||||||
| Salt Storage Capacity | 270 lbs | 270 lbs | 350 lbs | 420 lbs | |||||||||||||||||||||||||
| Flow Rate @ 15 psi Pressure Drop | 7.2 US gpm | 7.4 US gpm | 9.0 US gpm | 9.2 US gpm | |||||||||||||||||||||||||
| Flow Rate @ 25 psi Pressure Drop | 10.0 US gpm | 10.1 US gpm | 11.9 US gpm | 12.1 US gpm | |||||||||||||||||||||||||
| Backwash Flow Rate | 5.0 US gpm | 5.0 US gpm | 7.0 US gpm | 10.0 US gpm | |||||||||||||||||||||||||
| Shipping Weight | 167 lbs | 218 lbs | 278 lbs | 425 lbs | |||||||||||||||||||||||||
| Regeneration Type | UPFLOW (COUNTER CURRENT) | ||||||||||||||||||||||||||||
| Plumbing Connections | INCLUDES 1" 90° NPT ELBOWS | ||||||||||||||||||||||||||||
| Resin Type | AQUAFINE® 8% CATION EXCHANGE RESIN | ||||||||||||||||||||||||||||
| Carbon Type |
HTO MODELS - AQUAFINE® CATALYTIC CARBON HTOK MODELS - AQUAFINE® CATALYTIC CARBON WITH KDF85 |
||||||||||||||||||||||||||||
| Electrical Requirements | INPUT 120V 60 Hz - OUTPUT 12V 650mA | ||||||||||||||||||||||||||||
| Water Temperature Limits | MIN 40° - MAX 110° F (4° - 43° C) | ||||||||||||||||||||||||||||
| Water Pressure Limits | MIN 30 - MAX 125 PSI (207 - 862 KPA) | ||||||||||||||||||||||||||||
| NVO489UFHTO | 100 | 150 | 200 | 300 |
|---|---|---|---|---|

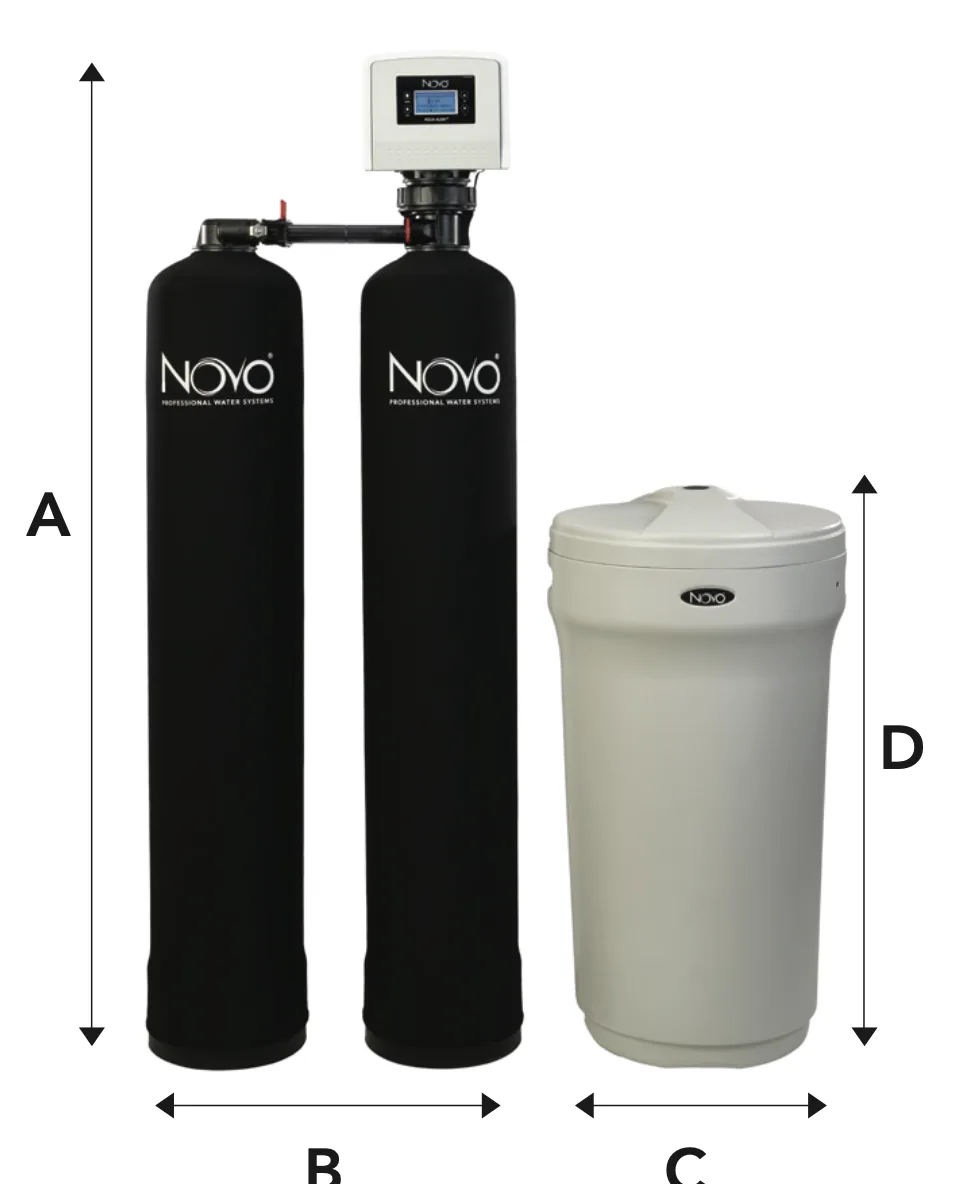

| TANK / VALVE (A x B inches) | 56.25 x 22.75 | 62.25 x 23.25 | 60.5 x 24.5 | 77.0 x 33.5 |
| BRINE TANK (C x D inches) | 18.1 x 34.5 | 18.1 x 34.5 | 20.3 x 37.4 | 23.0 x 40.5 |
| AQUA ALERT® WIFI Optional Accessories | |
|---|---|
| ITEM NUMBER | DESCRIPTION |
| 60010380 | KIT, LEAK SENSOR & 1" ELECTRIC BALL VALVE |
| 60010378 | LEAK SENSOR, WIFI |
| 60010379 | 1" ELECTRIC BALL VALVE, WIFI |
80155268
