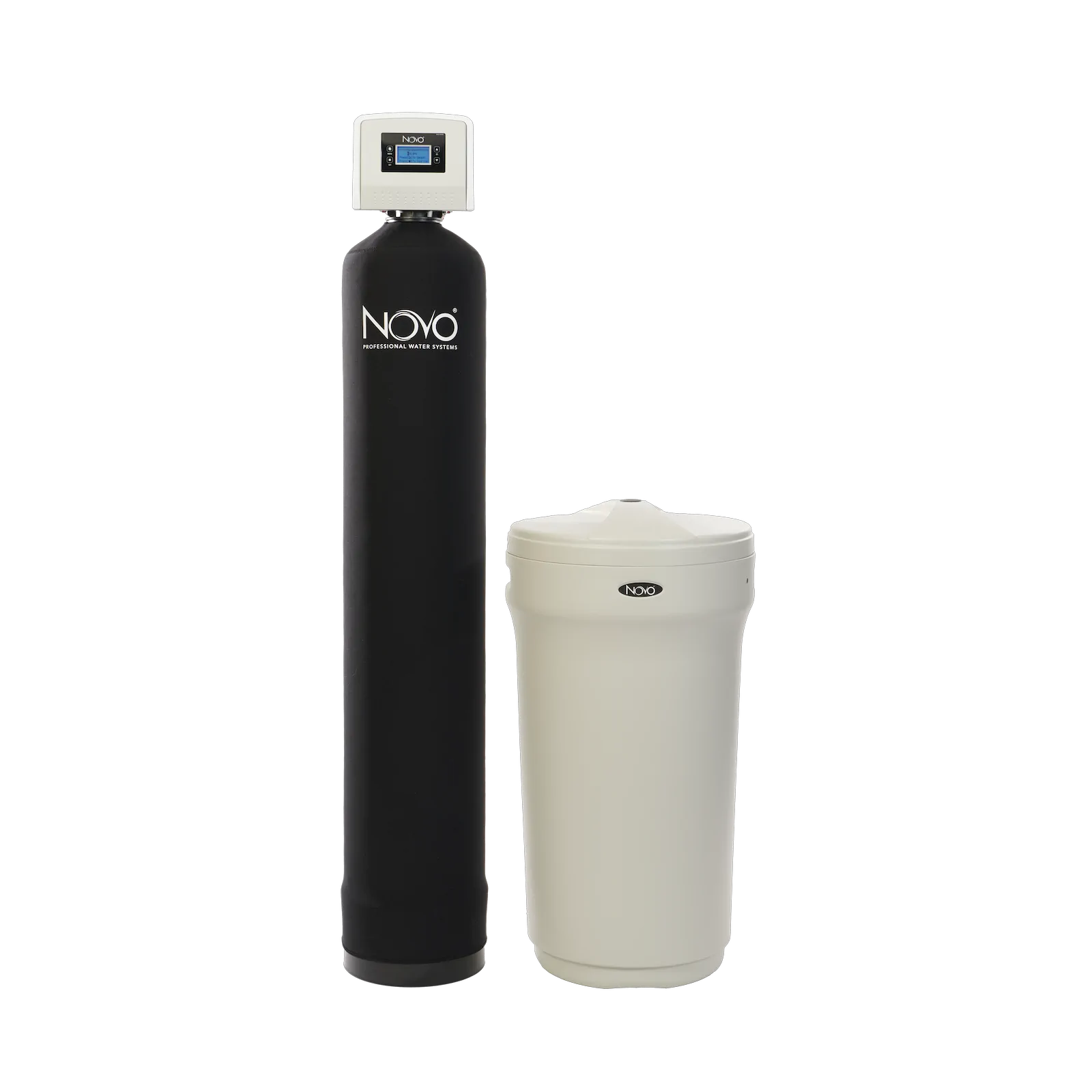

NVO489DF Whole Home Carbon Filters
Reduce Chlorine, Chloramines and Other Chemicals from Your Water
Based on model: NVO489DFTO-150.
Chlorine and chloramines are the most widely used disinfectants in municipal water treatment, ensuring water remains biologically safe during distribution to homes and businesses. However, once delivered, these disinfectants can pose health risks and cause long-term damage to plumbing systems. Carbon filtration remains the most effective and proven method for reducing chlorine, chloramines, and various other contaminants, including heavy metals like lead and mercury, pesticides, volatile organic compounds (VOCs), trihalomethanes (THMs), toxic organics, phenols and tannins. In addition to health concerns, chlorine, chloramines and organic compounds can negatively affect water’s taste and odor.
Spec Sheets
Brochures
How To Videos
Warranty
Certifications
Key Features
Chlorine Reduction: Novo TO and TOK filters use high-quality AQUAFINE® granular activated carbon (GAC) to adsorb chlorine and organic compounds, significantly improving water quality.
Chloramine Reduction: Novo DFTOC and DFTOCK filters use AQUAFINE® catalytic granular activated carbon to reduce chloramine, chlorine and organic compounds.
Optional KDF: DFTOK and DFTOCK models feature a KDF protector that controls rotten egg odor caused by sulphate reducing bacteria that can occur in carbon filters on some municipal water supplies in warm water markets (available only in the U.S.A.)
Tank Features: Moisture wicking neoprene tank jacket included on all pressure tanks.

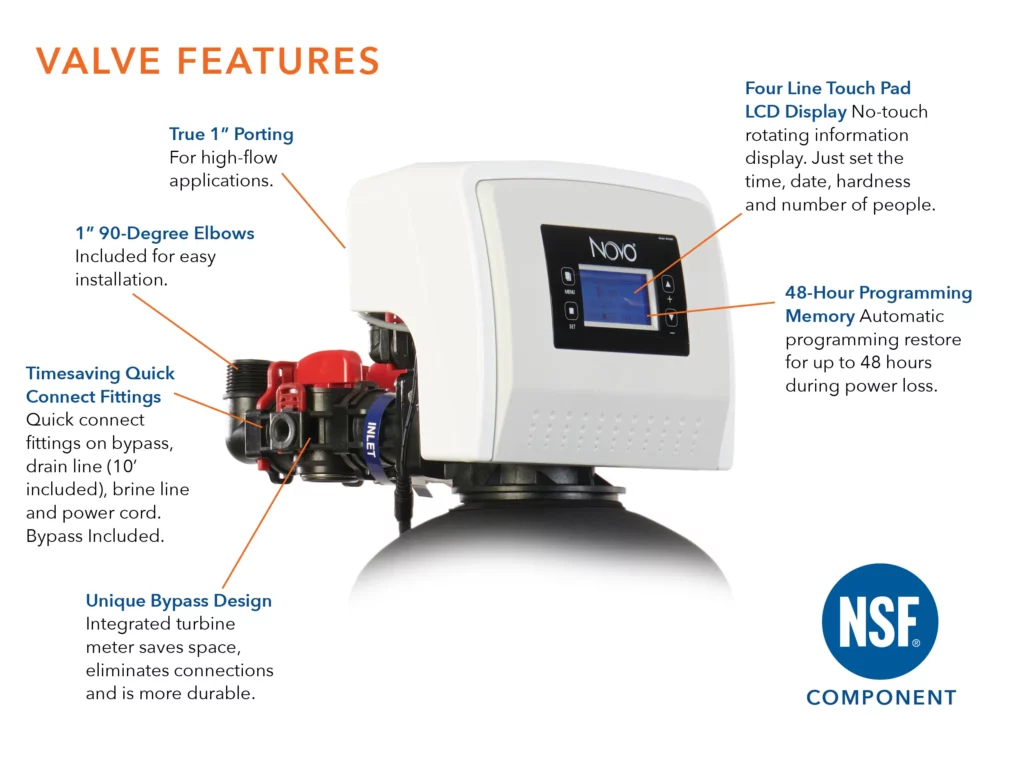

Valve Features
Professionally Engineered for Performance
| Item # | Model | Media (Cu Ft) |
Flow Rate | Pressure Tank Size (inches) |
Pipe Size (inches) |
Media Loaded | Shipping Weight (lbs) |
Capacity | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Service (US gpm) |
Peak (US gpm) |
Backwash (US gpm) |
||||||||
| TASTE & ODOR FILTERS — Single Tank, Aquafine® Granular Activated Carbon (Coconut Shell) | ||||||||||
| 15060754 | NVO489DFTO‑100 | 1.0 ft3 | 5.0 | 7.0 | 4.0 | 9 × 48 | 1" | Yes | 66 | 750,000 gal |
| 15060755 | NVO489DFTO‑150 | 1.5 ft3 | 7.0 | 10.0 | 5.0 | 10 × 54 | 1" | Yes | 85 | 1,100,000 gal |
| 15060756 | NVO489DFTO‑200 | 2.0 ft3 | 10.0 | 12.0 | 7.0 | 12 × 52 | 1" | Yes | 107 | 1,500,000 gal |
| 15060757 | NVO489DFTO‑300 | 3.0 ft3 | 12.0 | 15.0 | 10.0 | 14 × 65 | 1" | No | 160 | 2,250,000 gal |
| TASTE & ODOR FILTERS WITH KDF — Single Tank, Aquafine® Granular Activated Carbon with KDF85 (U.S.A. only) | ||||||||||
| 15060759 | NVO489DFTOK‑100 | 1.0 ft3 | 5.0 | 7.0 | 4.0 | 9 × 48 | 1" | Yes | 66 | 750,000 gal |
| 15060760 | NVO489DFTOK‑150 | 1.5 ft3 | 7.0 | 10.0 | 5.0 | 10 × 54 | 1" | Yes | 85 | 1,100,000 gal |
| 15060761 | NVO489DFTOK‑200 | 2.0 ft3 | 10.0 | 12.0 | 7.0 | 12 × 52 | 1" | Yes | 107 | 1,500,000 gal |
| CHLORAMINE REDUCTION FILTERS — Single Tank, Aquafine® Catalytic Carbon | ||||||||||
| 15060764 | NVO 489DFTOC‑100 | 1.0 ft3 | 5.0 | 7.0 | 4.0 | 9 × 48 | 1" | Yes | 66 | 750,000 gal |
| 15060765 | NVO 489DFTOC‑150 | 1.5 ft3 | 7.0 | 10.0 | 5.0 | 10 × 54 | 1" | Yes | 85 | 1,100,000 gal |
| 15060766 | NVO 489DFTOC‑200 | 2.0 ft3 | 10.0 | 12.0 | 7.0 | 12 × 52 | 1" | Yes | 107 | 1,500,000 gal |
| 15060767 | NVO 489DFTOC‑300 | 3.0 ft3 | 12.0 | 15.0 | 10.0 | 14 × 65 | 1" | No | 160 | 2,250,000 gal |
| CHLORAMINE REDUCTION FILTERS WITH KDF — Single Tank, Aquafine® Catalytic Carbon with KDF85 (U.S.A. only) | ||||||||||
| 15060769 | NVO489DFTOCK‑100 | 1.0 ft3 | 5.0 | 7.0 | 4.0 | 9 × 48 | 1" | Yes | 66 | 750,000 gal |
| 15060770 | NVO489DFTOCK‑150 | 1.5 ft3 | 7.0 | 10.0 | 5.0 | 10 × 54 | 1" | Yes | 85 | 1,100,000 gal |
| 15060771 | NVO489DFTOCK‑200 | 2.0 ft3 | 10.0 | 12.0 | 7.0 | 12 × 52 | 1" | Yes | 107 | 1,500,000 gal |

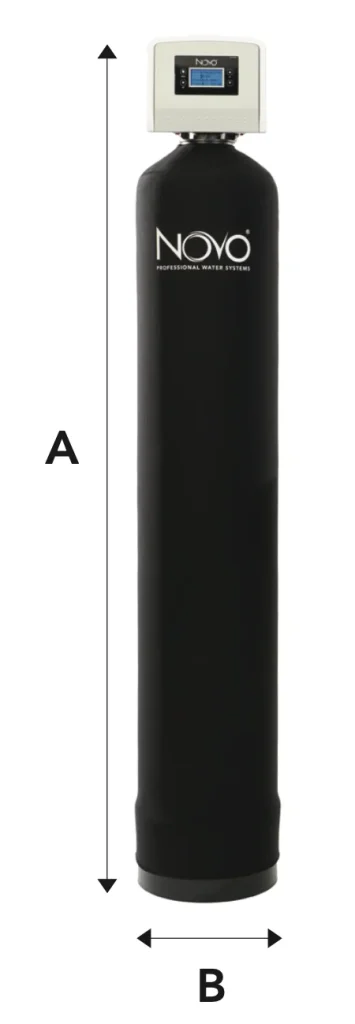

Dimensions
| NVO485DF Carbon Filters | 100 | 150 | 200 | 300 |
|---|---|---|---|---|
| TANK / VALVE (A x B inches) | 56.25 x 9.0 | 62.25 x 10.0 | 60.5 x 12.0 | 74.25 x 14.0 |
