NVO489UF Cabinet with Aqua Alert
1” Porting, High-Efficiency, WIFI Monitoring
The 489UF with Aqua Alert® combines high-efficiency water softening with the ability to monitor and control your softener from your phone. Third-party certified to provide luxuriously soft water, enjoy advanced features while using less salt and water.
Warranty
Certifications
Benefits of Soft Water
Sparkling Dishes
No more dull film or hard water scale on your kitchenware. Enjoy sparkling dishes and glassware every day.
Smart Savings
Clean smarter, not harder. Use less soap and detergent to clean your laundry, dishes and home.
Softer Laundry
Enjoy the feeling of softer, brighter clothes, towels and sheets with every load of laundry.
Healthy Skin & Hair
Look and feel your best with healthier, softer skin and hair.
Cleaner Bathroom
Make your bathroom shine by getting rid of hard water scale buildup on your faucet, shower head, tub and surround.
Protect Your Home
Protecting your plumbing, water heater and water-using appliances from hard water scale helps them work better and last longer.
Key Features

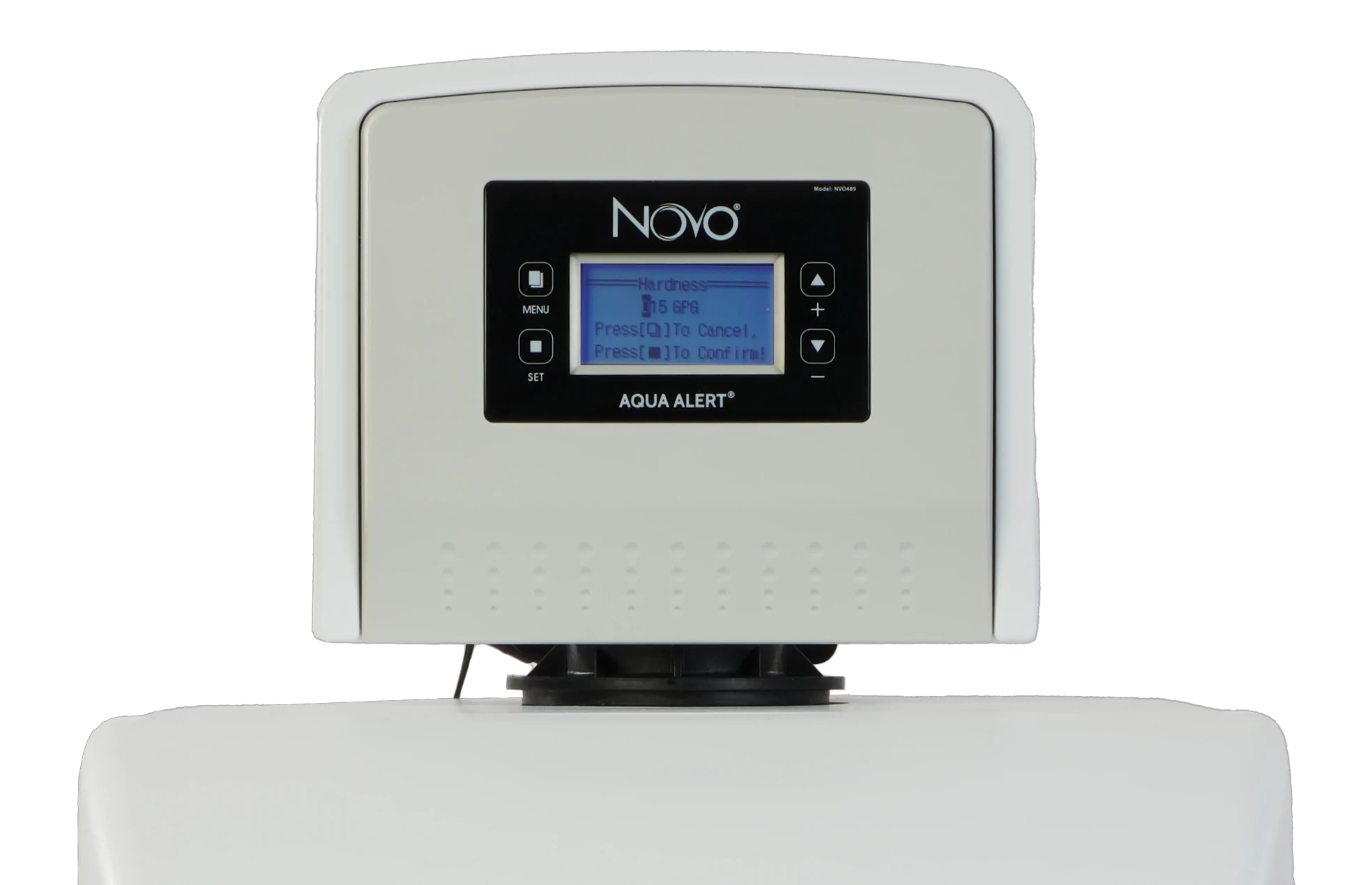

Aqua Alert®: Enjoy full control from the convenience of your phone with smart features like salt refill reminders, leak alert, and salt and water tracking. Optional leak alarm and remote water shut off give you complete control and peace of mind.
Upflow Regeneration:
Saves salt by preserving the unused portion of the softening bed from unnecessary ion exchange.
Precision Brining:
Calculates the exact amount of brine required to regenerate, using up to 30% less salt.
Automatic System Refresh:
If no water is used for seven (7) days, the system will perform an automatic refresh to prevent bacteria growth.
Backwash Frequency Preset:
Save water each regeneration by skipping up to ten (10) backwash cycles on clean municipal water supply.
Soft Water Brine Tank Refill:
Keeps tank & injectors clean.
Soft Water Recharge:
If capacity goes below 3%, an automatic 15-minute recharge restores softening until the next regeneration.

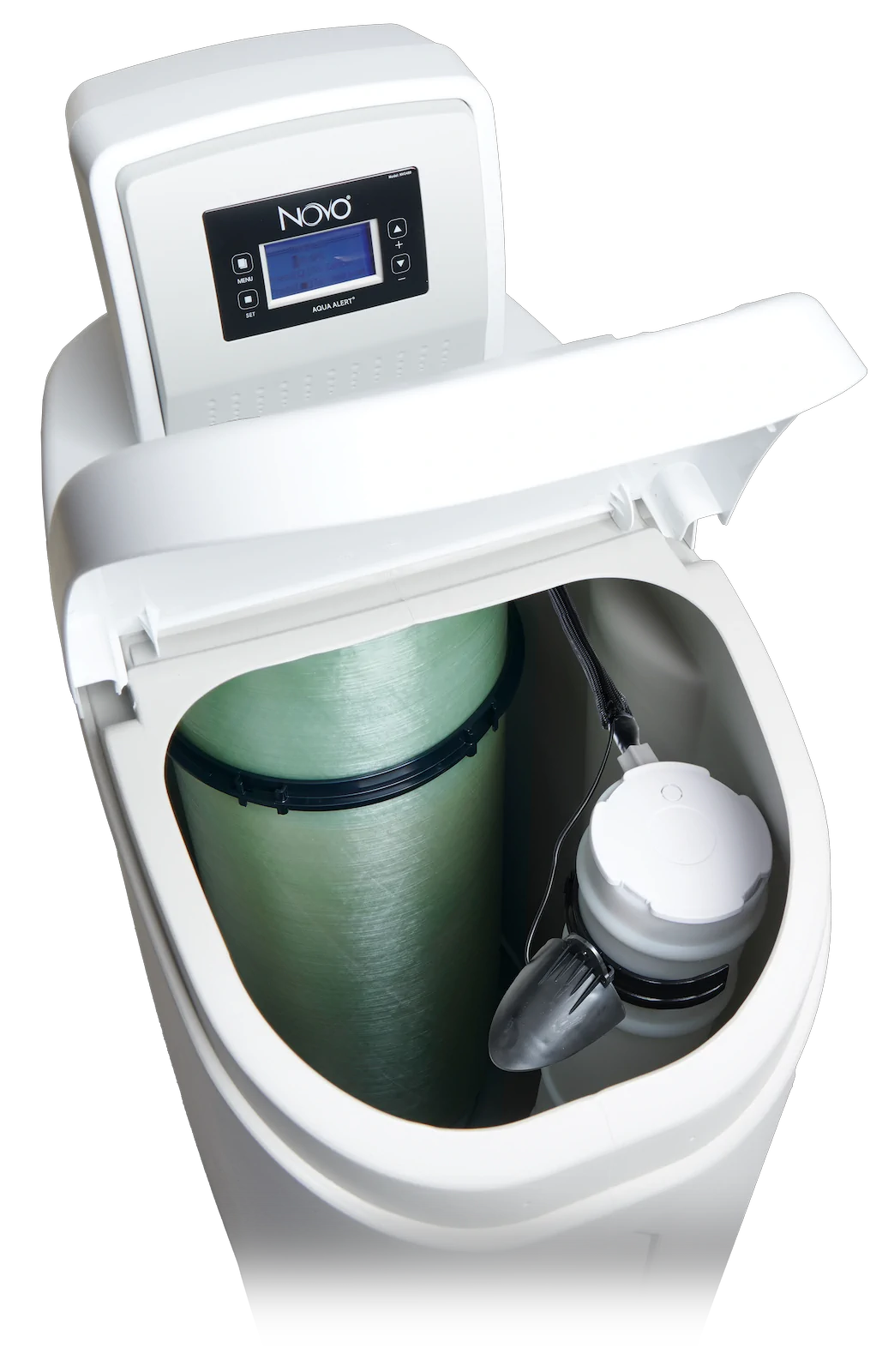

Tank Features:
Brine tank with safety float, air check and injection molded brine grid to reduce bridging. Moisture wicking neoprene tank jacket included on all pressure tanks.

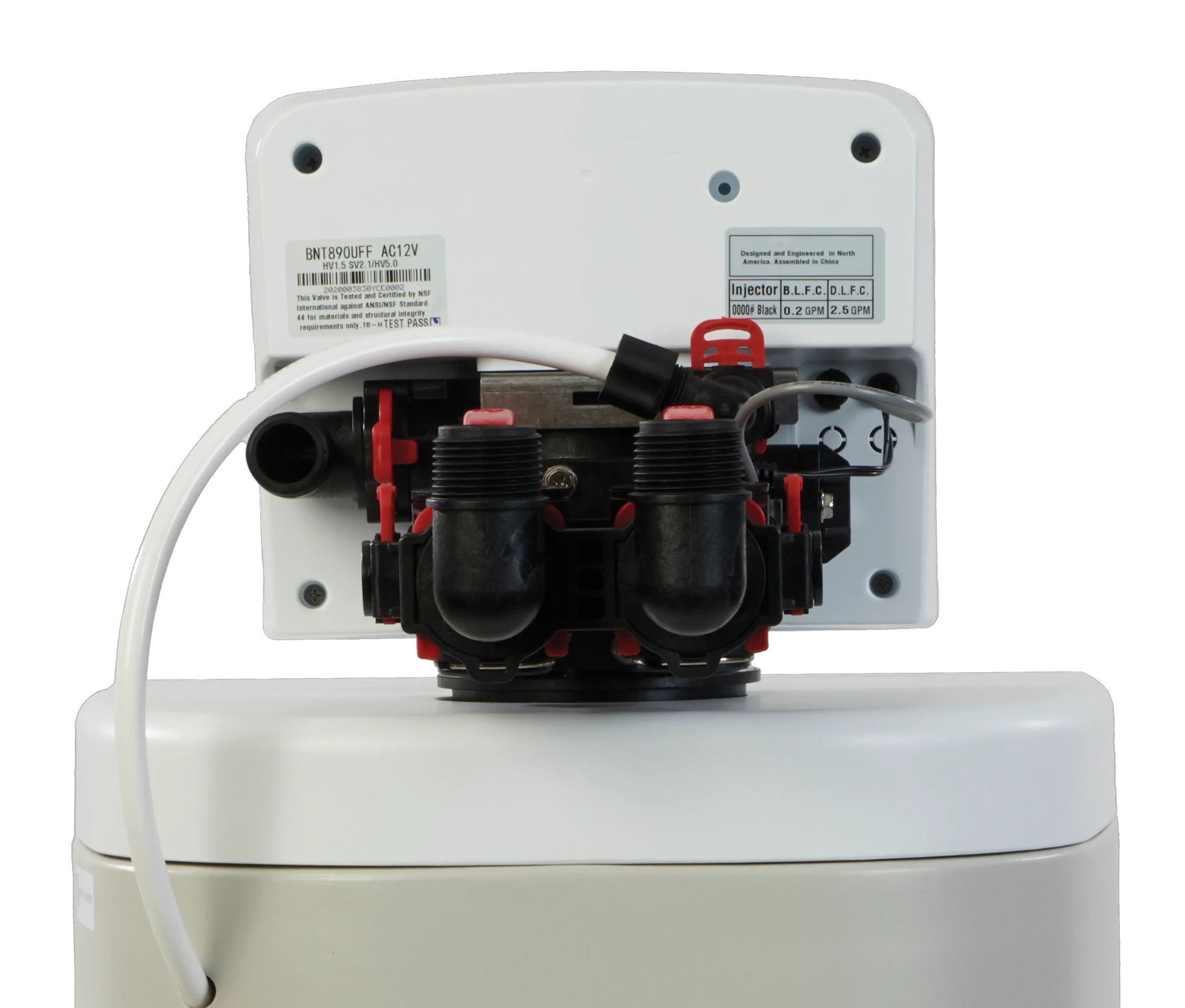

Valve Features
Professionally Engineered for Performance
| MODEL NUMBER | NVO489UF-100C WF |
|---|---|
| Item Number | 15020836 |
| HIGH EFFICIENCY SETTING (OPTIONAL) | |
| Salt Used Per Regeneration | 3.0 lbs |
| Water Used Per Regeneration | 28.3 gal |
| Hardness Removal (Grains) | 15,000 |
| FACTORY SETTING (STANDARD CAPACITY) | |
| Salt Used Per Regeneration | 6.0 lbs |
| Water Used Per Regeneration | 48.6 gal |
| Hardness Removal (Grains) | 25,000 |
| HIGH CAPACITY SETTING (OPTIONAL) | |
| Salt Used Per Regeneration | 10.0 lbs |
| Water Used Per Regeneration | 69.5 gal |
| Hardness Removal (Grains) | 30,000 |
| Resin Quantity (Cubic Feet) | 1.0 ft³ |
| Media Loaded | Yes |
| Salt Storage Capacity | 175 lbs |
| Flow Rate @ 15 psi Pressure Drop | 12.0 US gpm |
| Flow Rate @ 25 psi Pressure Drop | 16.0 US gpm |
| Back Wash Flow Rate | 2.4 US gpm |
| Shipping Weight | 110 lbs |
| Regeneration Type | UPFLOW (COUNTER CURRENT) |
| Maximum Efficiency | 5,060 GRAINS/LB SALT |
| Plumbing Connections | INCLUDES 1" 90° NPT ELBOWS |
| Resin Type | AQUAFINE® 8% HIGH CAPACITY ION EXCHANGE RESIN |
| Electrical Requirements | INPUT 120V 60 Hz - OUTPUT 12V 650mA |
| Water Temperature Limits | MIN 40° - MAX 110° F (4° - 43°C) |
| Water Pressure Limits | MIN 30 - MAX 125 PSI (207 - 862 KPA) |
Professionally Engineered for Performance
| MODEL NUMBER | NVO489UF-100 (Cabinet) |
|---|---|
| Dimensions | 16.5 x 19.3 x 43.3 |
