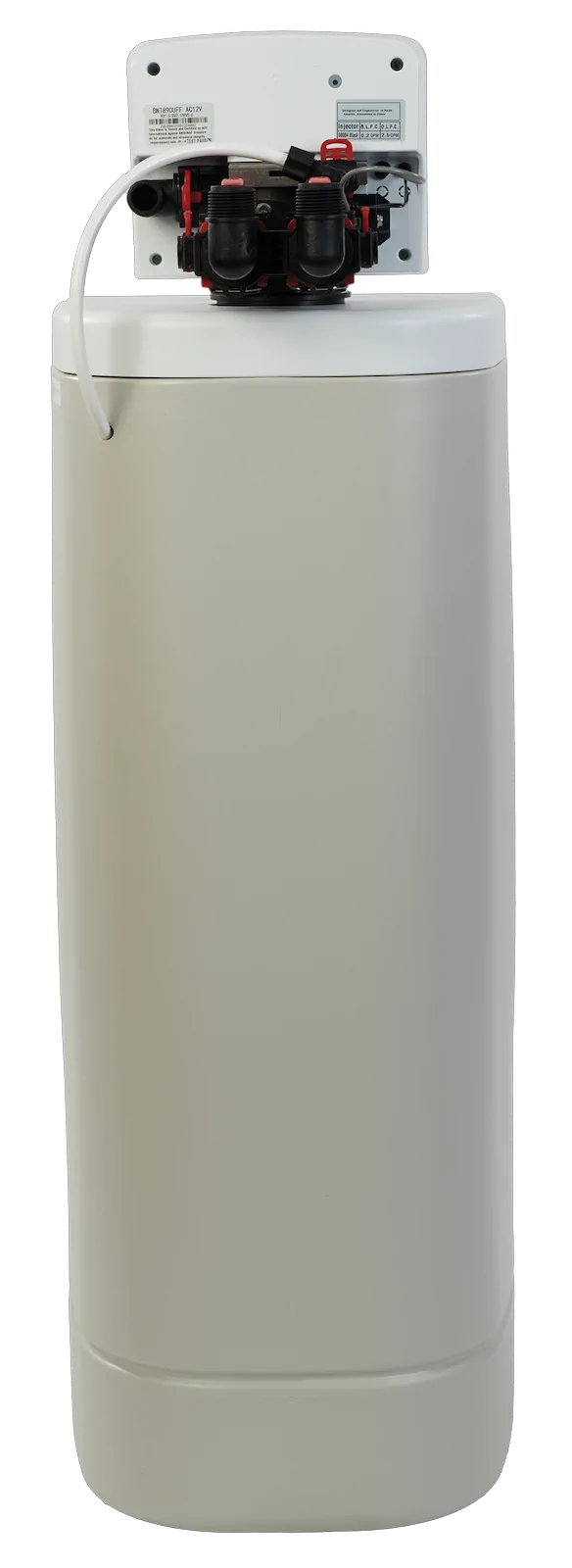

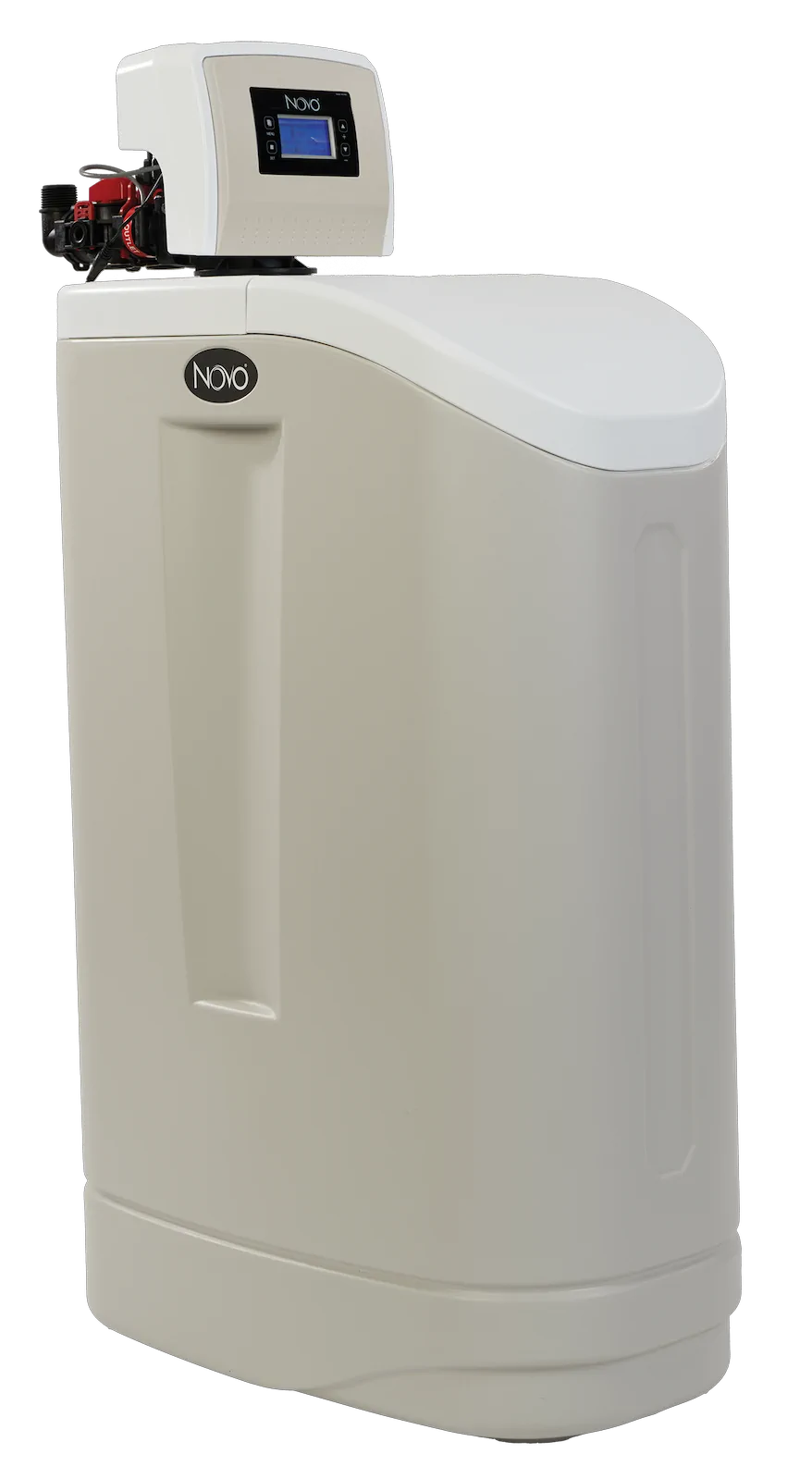

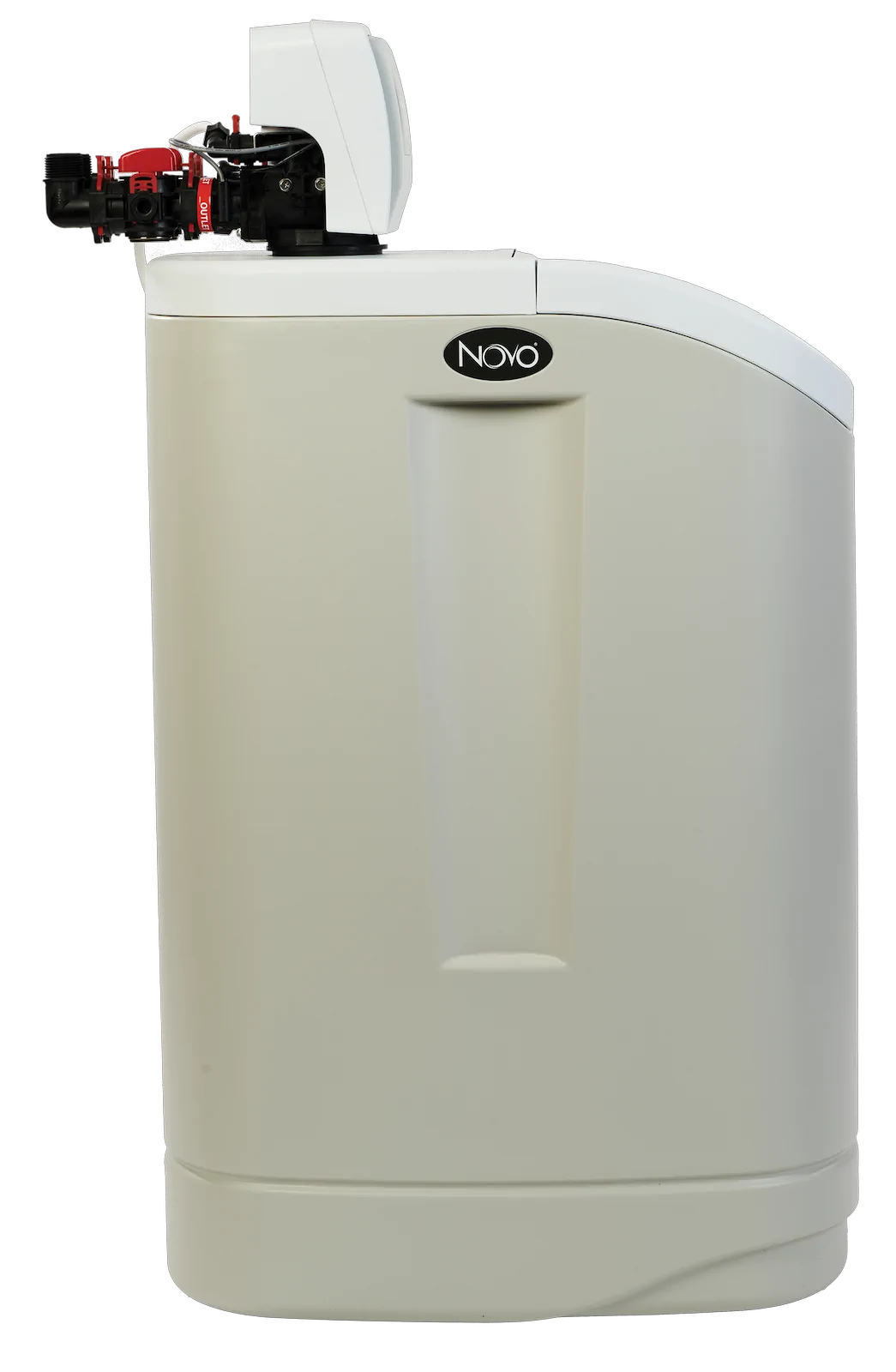

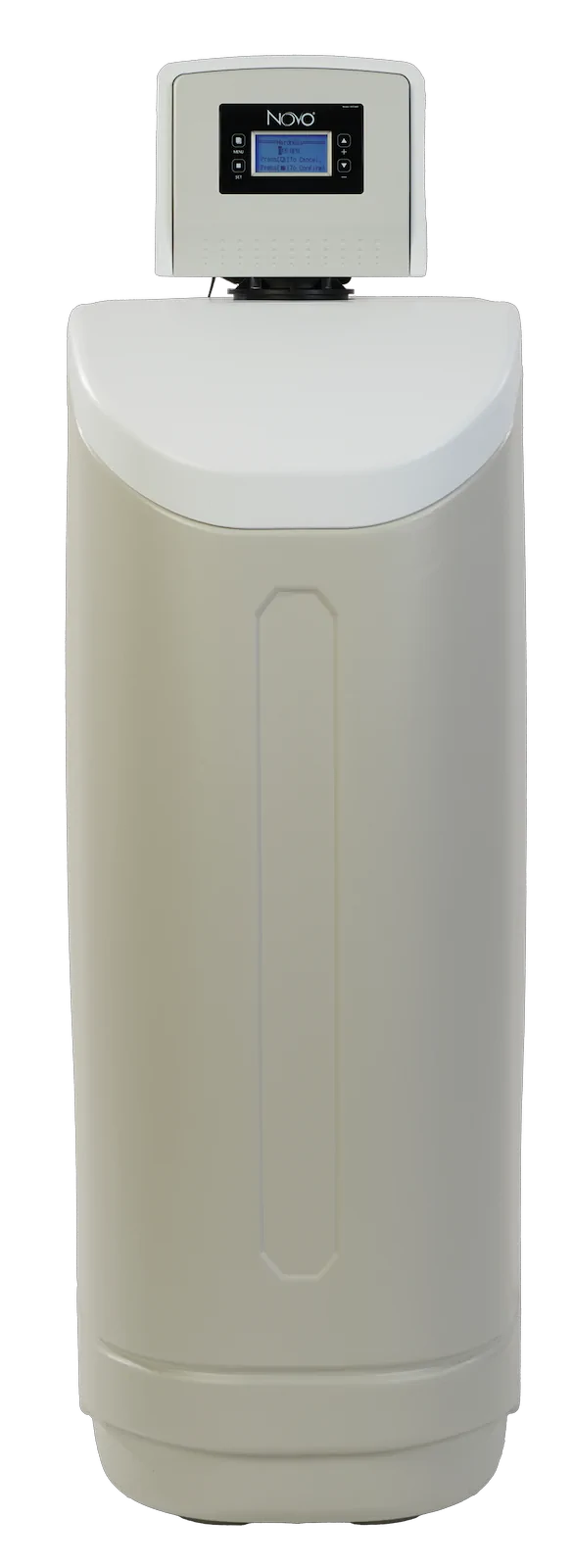

NVO489DF Cabinet
1” Porting, High-Efficiency, Compact Size
The Novo 489DF cabinet softener delivers reliable performance
with true 1” porting. Third-party certified to provide luxuriously
soft water, enjoy advanced technology and user-friendly
programming.
Brochures
How To Videos
Warranty
Certifications
Benefits of Soft Water
Sparkling Dishes
No more dull film or hard water scale on your kitchenware. Enjoy sparkling dishes and glassware every day.
Smart Savings
Clean smarter, not harder. Use less soap and detergent to clean your laundry, dishes and home.
Softer Laundry
Enjoy the feeling of softer, brighter clothes, towels and sheets with every load of laundry.
Healthy Skin & Hair
Look and feel your best with healthier, softer skin and hair.
Cleaner Bathroom
Make your bathroom shine by getting rid of hard water scale buildup on your faucet, shower head, tub and surround.
Protect Your Home
Protecting your plumbing, water heater and water-using appliances from hard water scale helps them work better and last longer.
Key Features
Automatic System Refresh:
If no water is used for seven (7) days, the system will perform an automatic refresh to prevent bacteria growth.
Backwash Frequency Preset:
Save up to 2,000 gallons of water per year by skipping up to ten (10) backwash cycles on clean municipal water supply.
Soft Water Brine Tank Refill:
Keeps tank & injectors clean.
Soft Water Recharge:
If capacity goes below 3%, an automatic 15-minute recharge restores softening until the next regeneration.

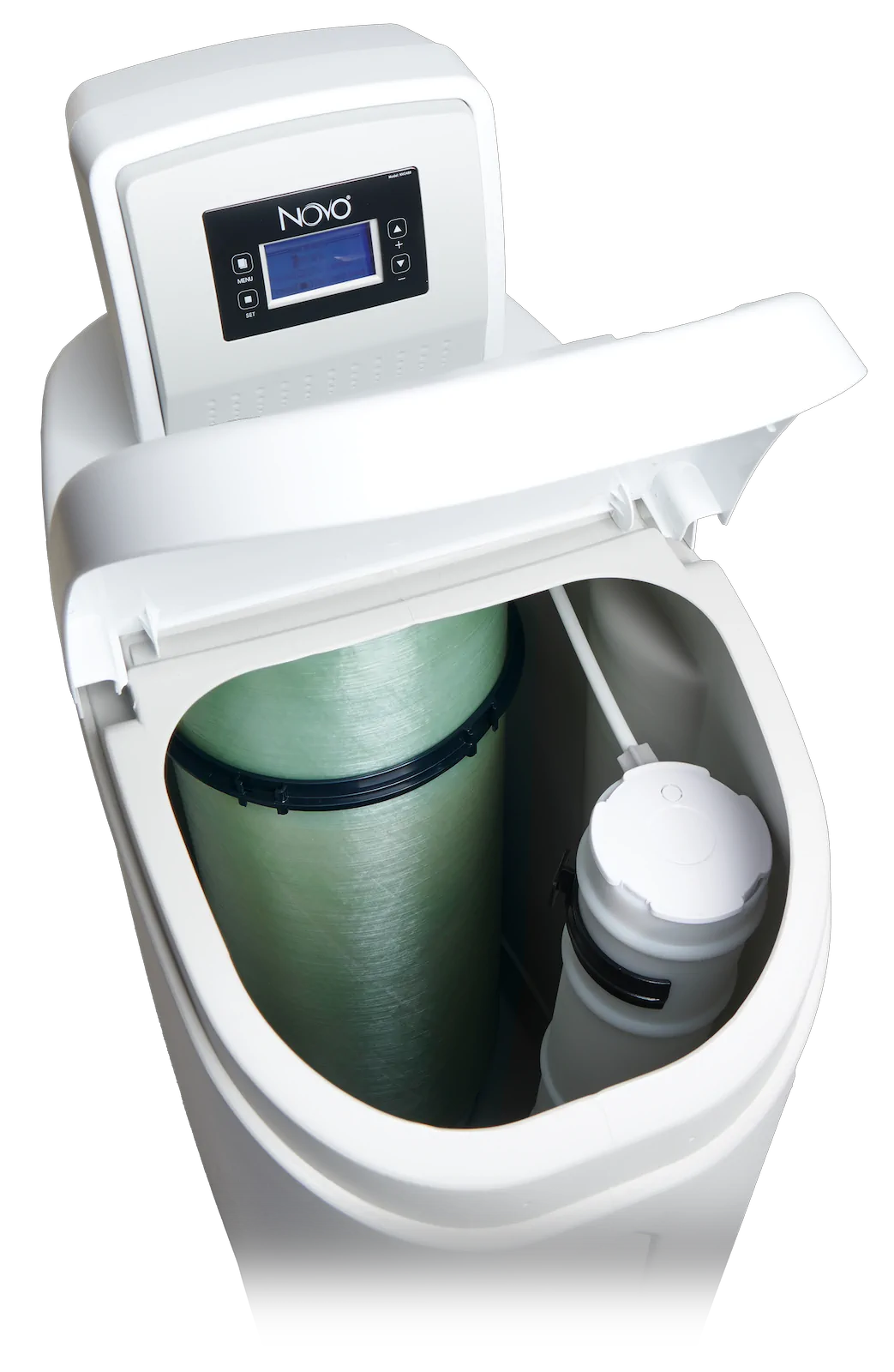

Cabinet Features:
Cabinet comes with safety float and air check.
Valve Features
Professionally Engineered for Performance
| MODEL NUMBER | NVO489DF-100 (CABINET) |
|---|---|
| Item Number | 15020695 |
| CAPACITY (GRAINS) | |
| @ 10 lbs/Cubic Feet | 26,500 |
| @ 6 lbs/Cubic Feet Factory Setting | 22,000 |
| @ 3 lbs/Cubic Feet | 14,000 |
| REGENERATION WATER USAGE (GALLONS) | |
| Clean Water (Factory Setting) | 48.6 gal |
| Problem Water | 69.5 gal |
| Resin Quantity (Cubic Feet) | 1.0 ft³ |
| Media Loaded | Yes |
| Salt Storage Capacity | 225 lbs |
| Flow Rate @ 15 psi Pressure Drop | 12.0 gpm |
| Flow Rate @ 25 psi Pressure Drop | 16.0 gpm |
| Back Wash Flow Rate | 2.5 US gpm |
| Shipping Weight | 110 lbs |
| Regeneration Type | DOWNFLOW (COCURRENT) |
| Plumbing Connections | INCLUDES 1" 90° NPT ELBOWS |
| Resin Type | AQUAFINE® 8% CATION EXCHANGE RESIN |
| Electrical Requirements | INPUT 120V 60 Hz - OUTPUT 12V 650mA |
| Water Temperature Limits | MIN 40° - MAX 110° F (4° - 43° C) |
| Water Pressure Limits | MIN 30 - MAX 125 PSI (207 - 862 KPA) |
Dimensions
| MODEL NUMBER | NVO489DF-100 (Cabinet) |
|---|---|
| Dimensions | 14 x 24x 44 |
